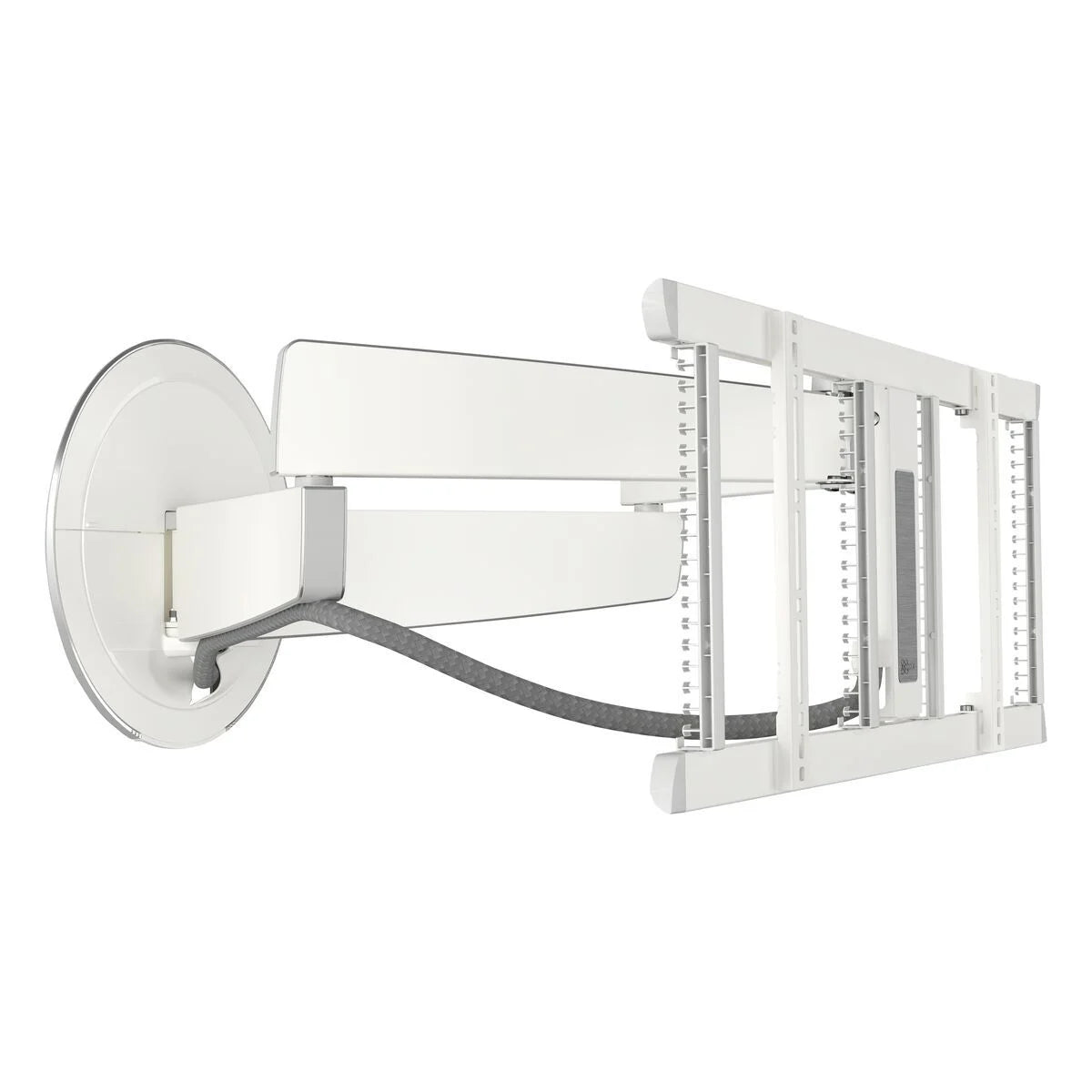

Vogel's TVM 7655 SIGNATURE DesignMount Full-Motion TV Wall Mount
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
- OneFinger™ Movement — Effortlessly rotate your TV into any position with one finger
- SIGNATURE Series Design — Vogel's most innovative and stylish wall mount to date
- CIS® Cable Inlay System — Routes and hides cables through the arms from wall to TV
- 3D-Leveling™ — Precisely level your TV horizontally, vertically and in depth after installation
- TÜV Certified — Tested to 3× maximum weight capacity; 15-year guarantee
Full-Motion TV Wall Mount with Unmatched Design
With the DesignMount TV wall mount from the SIGNATURE series, you bring an absolute design statement into your home. The stylish, minimalistic design blends seamlessly with the latest generation of large, slim TVs — including OLED and QLED displays. Suitable for screens from 40 to 77 inches and a maximum weight of 35 kg, with up to 120° of rotation for maximum viewing flexibility.
Superior Design, Unprecedented Perfection
The Vogel's SIGNATURE DesignMount TVM 7655 is one of the top models in the Vogel's range — the result of more than 50 years of experience in design, craftsmanship and innovation. If you want the very best for your large high-end TV, this is the wall mount of your dreams.
Comfortable Viewing from Any Angle
Thanks to Vogel's renowned OneFinger™ Movement, you can smoothly move the TV to the desired position for optimal viewing comfort. Depending on screen size, you can turn your TV up to 60° left or right. The Screen Protection System (SPS®) prevents your TV from hitting the wall — guaranteed for TVs up to 65 inches.
Large Forward Movement Range
The ingenious 4-arm mechanism with long, strong support arms gives the TVM 7655 a forward movement range of up to 72 cm — ideal for mounting in a cabinet or alcove.
Cables Neatly Out of Sight
The Cable Inlay System (CIS®) routes cables through the support arms from wall to TV. Integrated cable holders with a cover plate conceal up to 4 metres of cable at the back of your TV, and a slot in the wall plate allows cables to disappear cleanly into the wall.
Always Perfectly Level
3D-Leveling™ lets you level your TV horizontally, vertically and in depth after installation — even on uneven or slanted walls.
Ultimate Safety
SIGNATURE series mounts are TÜV certified and tested to three times their maximum weight capacity, ensuring your TV is mounted with absolute security. Vogel's also tests all mounts for longevity and endurance.
Easy Self-Installation
Simply follow the enclosed Quick Install Guide or consult the detailed manual and installation video online. Includes a drilling template, screws, Fischer® DuoPower plugs, and an Allen key. Use the free Vogel's DrillRight app to mark your first drill hole with precision.
Matching Cable Column
Complete the look with the matching aluminium cable column TVA 7000 (available in white or black), which connects seamlessly to the TVM 7655 wall plate.
Specifications
| EAN / Barcode | 8712285350580 |
| Product Series | SIGNATURE |
| Product Category | Full-Motion TV Wall Mount |
| Colour | Black |
| Min. Screen Size | 40" |
| Max. Screen Size | 77" |
| Max. Weight Load | 35 kg |
| VESA Hole Patterns | 200×100, 200×200, 200×300, 300×200, 300×300, 400×200, 400×300, 400×400, 600×200, 600×300, 600×400 mm |
| Min. Distance to Wall | 77 mm |
| Max. Distance to Wall | 715 mm |
| Maximum Rotation | Up to 120° (up to 60° left/right depending on screen size) |
| Number of Pivot Points | 4 |
| Cable Management | CIS® Cable Inlay System; integrated cable holders; cable sleeve |
| Screen Protection | SPS® Screen Protection System (guaranteed up to 65") |
| Remote Controlled | No |
| Integrated Soundbar | No |
| Certification | TÜV certified (tested to 3× max. weight) |
| Guarantee | 15 years |
| What's in the Box | Wall mount, interface plate, wall mounting kit with Fischer® DuoPower plugs, TV fasteners kit, Quick Installation Guide, drilling template, Allen key, cable sleeve |
