WiiM CI MOD A80 Custom Install Amplifier Module
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days

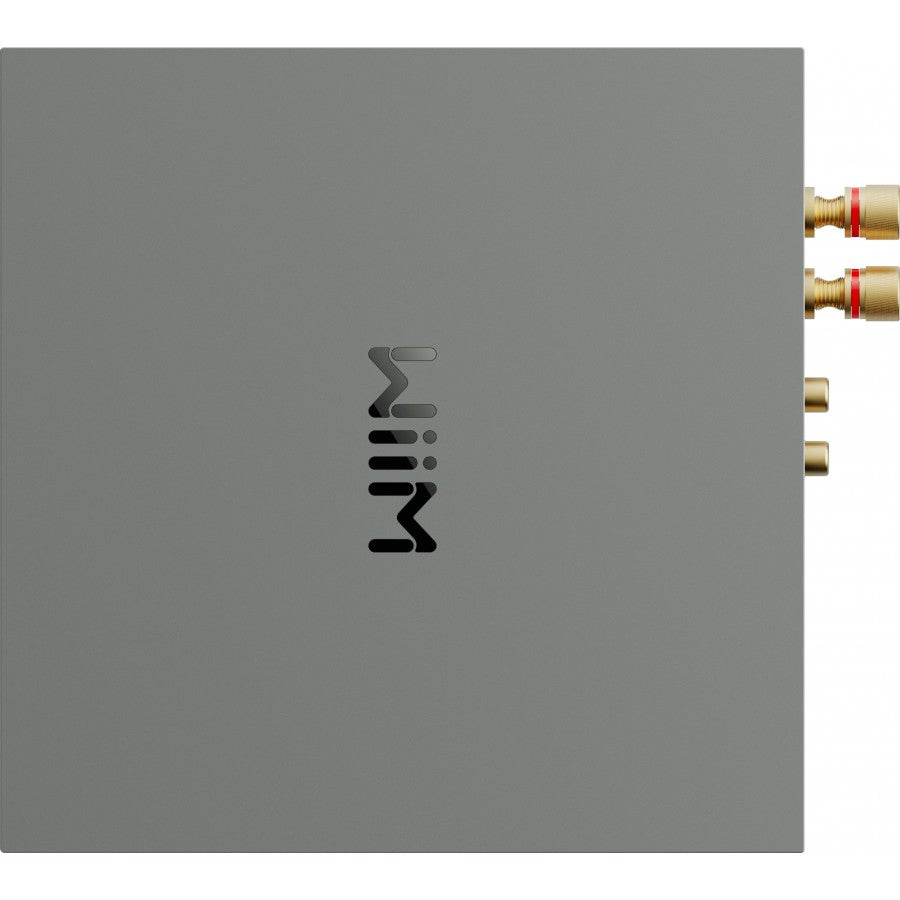

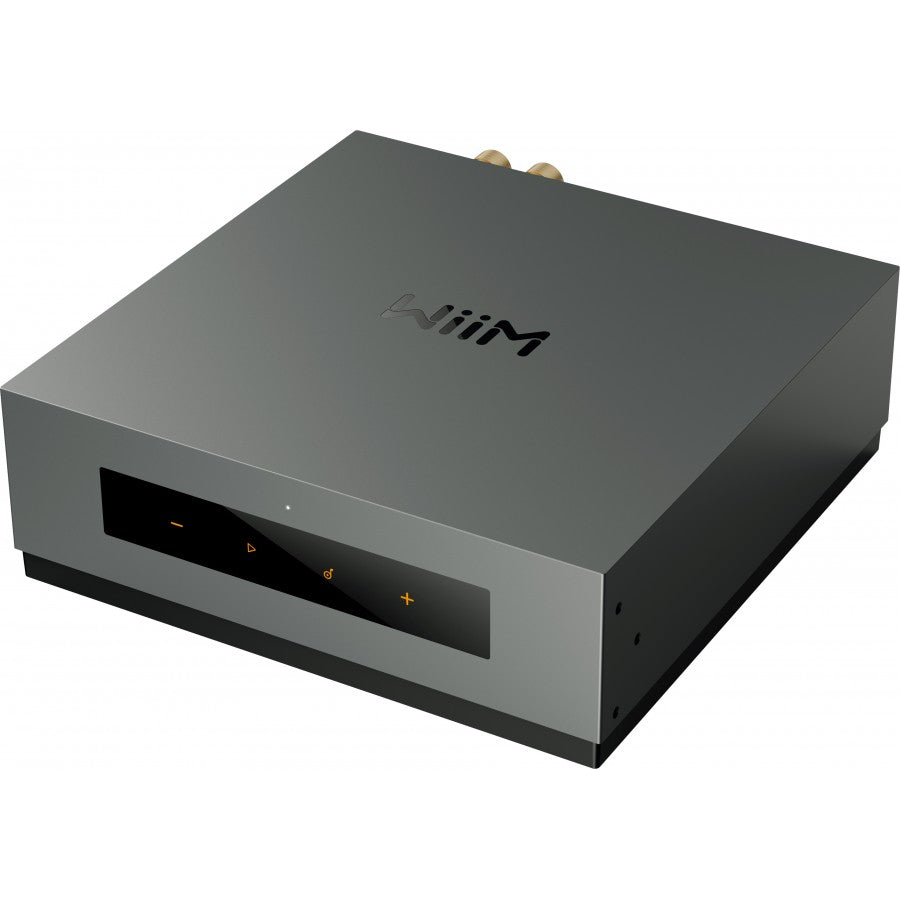

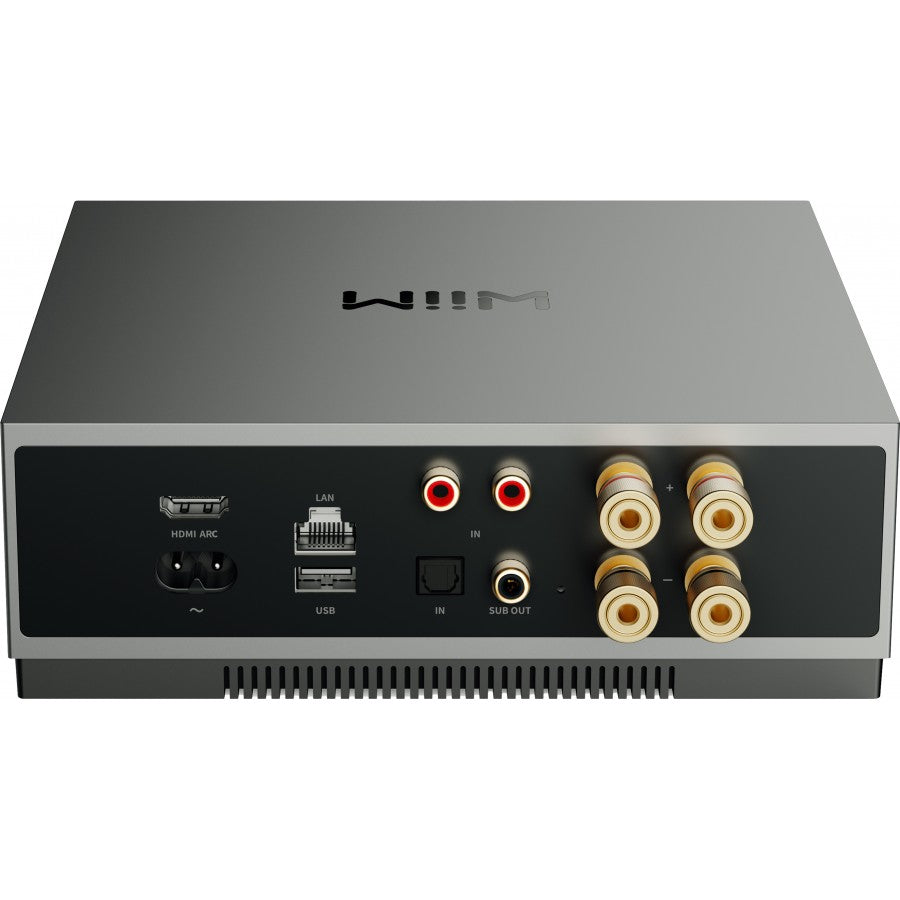

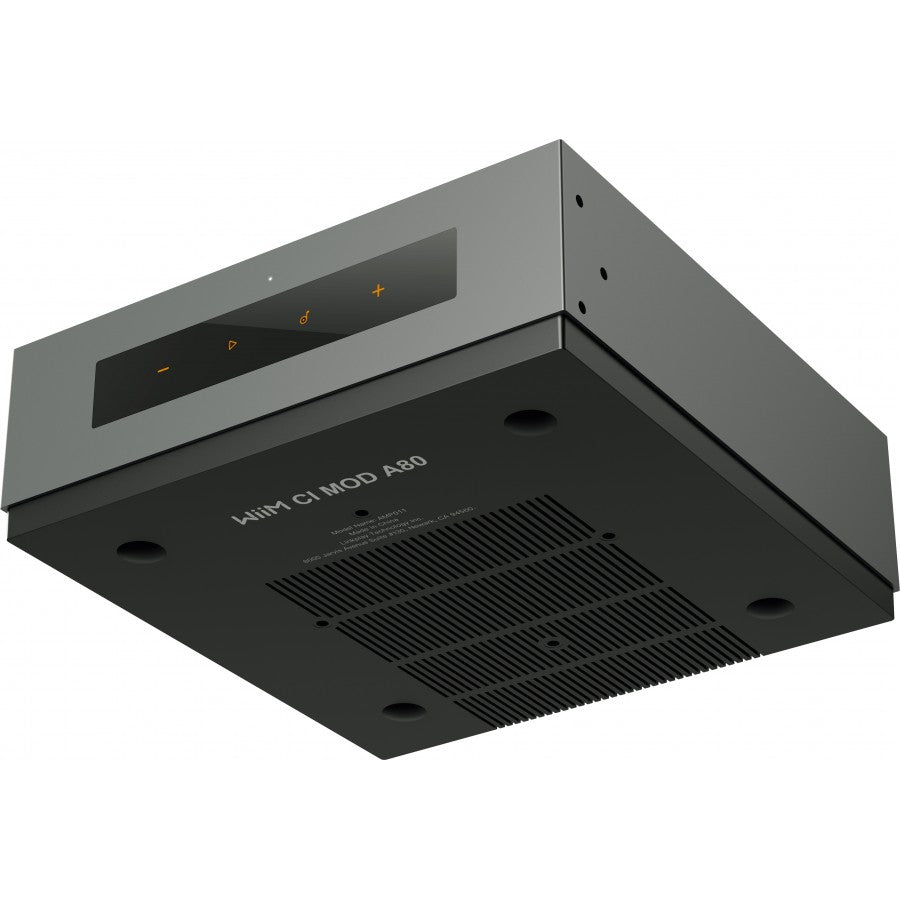

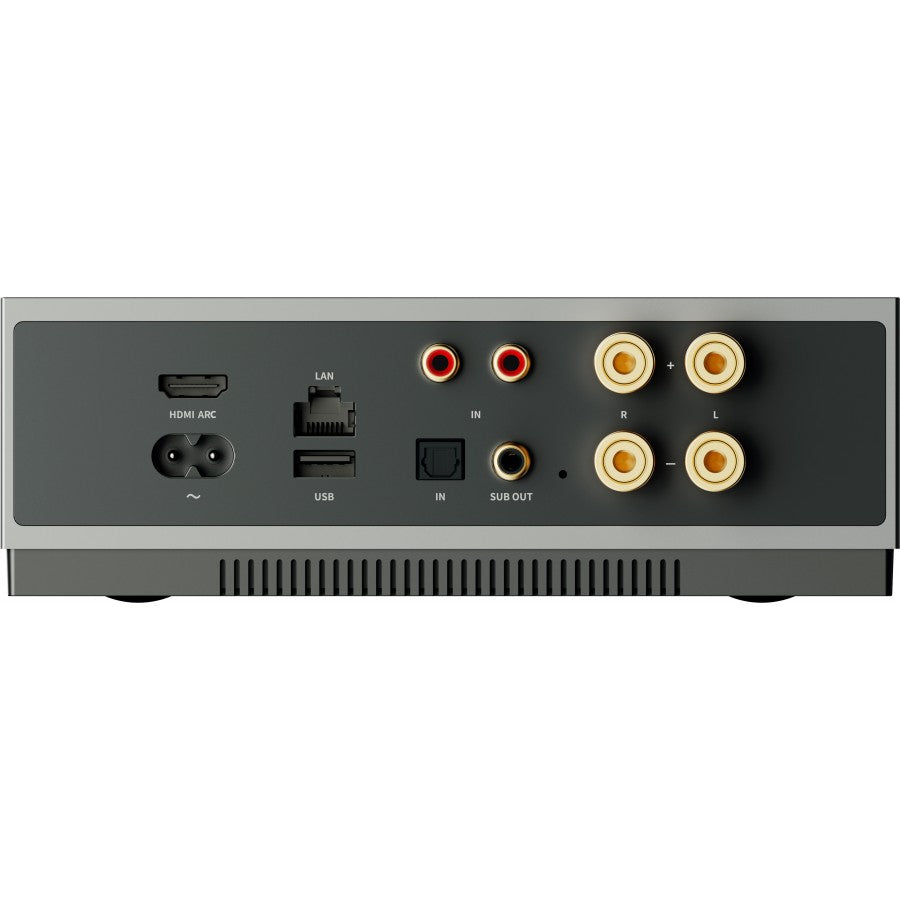

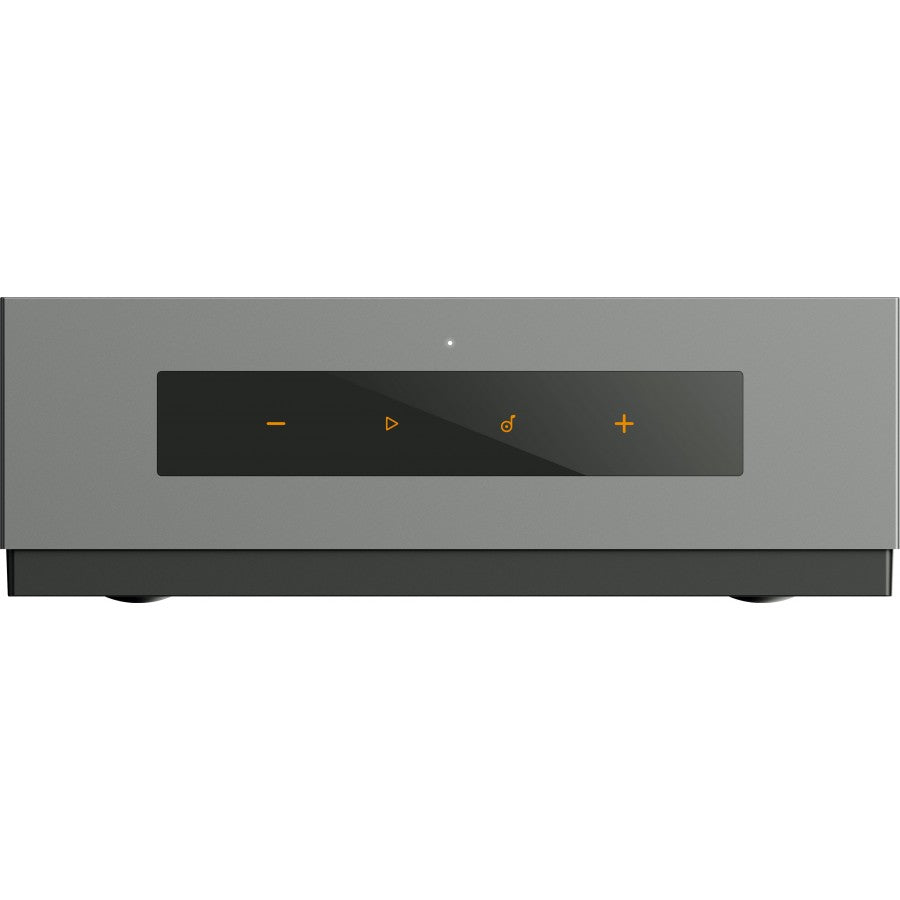

WiiM CI MOD A80 — Custom Install Amplifier Module
The WiiM CI MOD A80 is a high-performance custom install amplifier module designed for seamless integration into multi-room audio systems. Delivering 80W per channel into 4Ω, it combines audiophile-grade power with the flexibility and reliability demanded by professional CI installers. Compact, efficient, and built to WiiM's exacting standards, the CI MOD A80 slots directly into compatible WiiM CI enclosures for a clean, rack-ready installation.
Whether you're powering in-ceiling speakers in a bedroom, a home theatre surround zone, or a distributed audio backbone, the CI MOD A80 delivers consistent, low-distortion performance across every listening environment.
Key Features
- 80W per channel into 4Ω — ample headroom for demanding speaker loads
- Class D amplification for cool, efficient operation in enclosed CI spaces
- Designed for WiiM CI modular enclosure ecosystem
- Low THD+N for clean, accurate audio reproduction
- Wide frequency response for full-range speaker compatibility
- Compact module form factor — minimal footprint, maximum output
- Ideal for multi-room, whole-home, and custom install audio projects
Specifications
| Specification | Value |
|---|---|
| Model | CI MOD A80 |
| Amplifier Class | Class D |
| Output Power (4Ω) | 80W per channel |
| Output Power (8Ω) | 40W per channel |
| Channels | 2 (Stereo) |
| THD+N | <0.05% (1W, 1kHz) |
| Frequency Response | 20Hz – 20kHz (±0.5dB) |
| Signal-to-Noise Ratio | >100dB (A-weighted) |
| Input Impedance | 10kΩ |
| Speaker Impedance | 4Ω – 8Ω |
| Form Factor | CI Modular Module |
| Compatible Enclosure | WiiM CI Modular Enclosure |
| Power Supply | Via WiiM CI Enclosure (external PSU) |
| Operating Temperature | 0°C – 40°C |
| Brand | WiiM |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
